SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable vent stack flashing manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

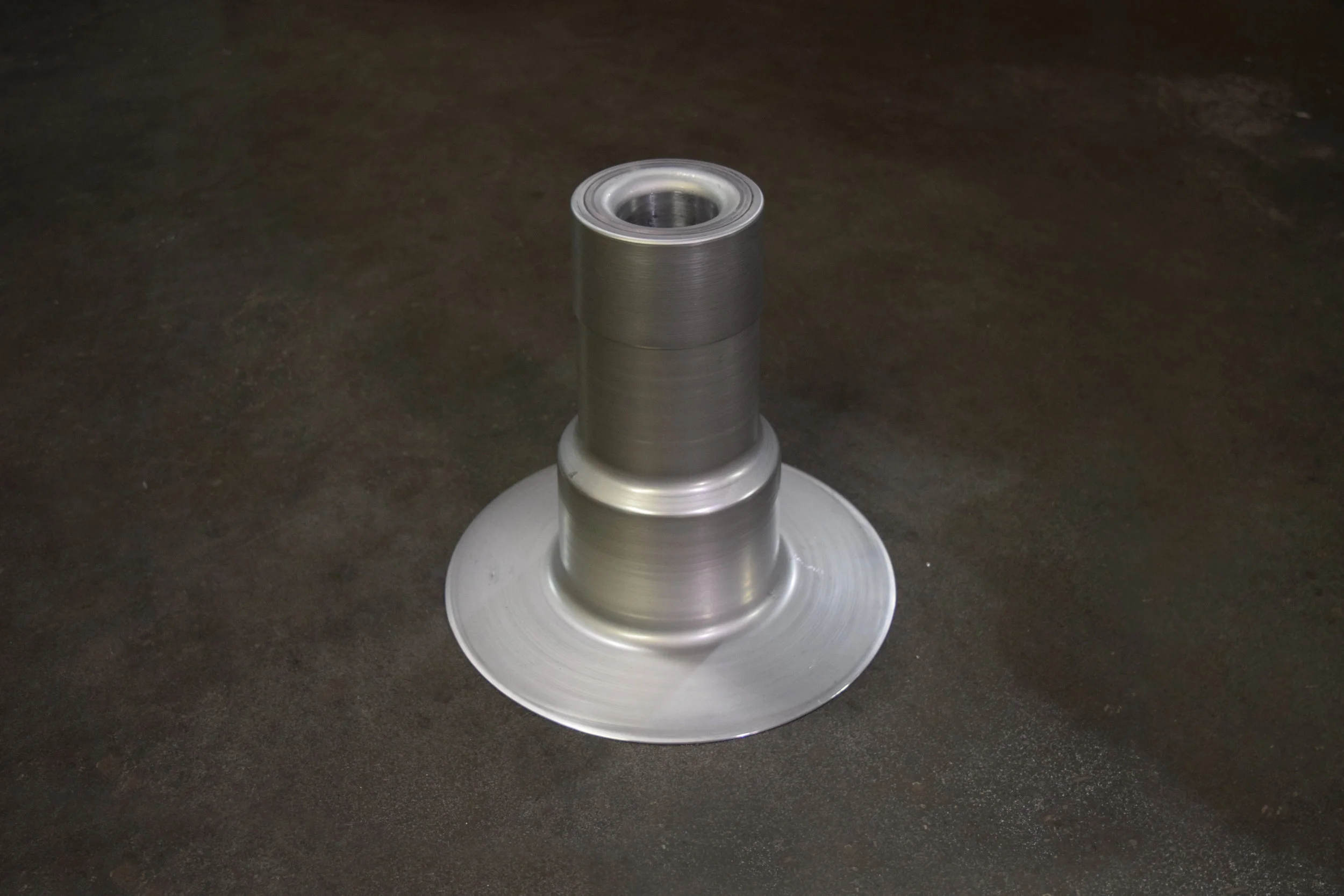

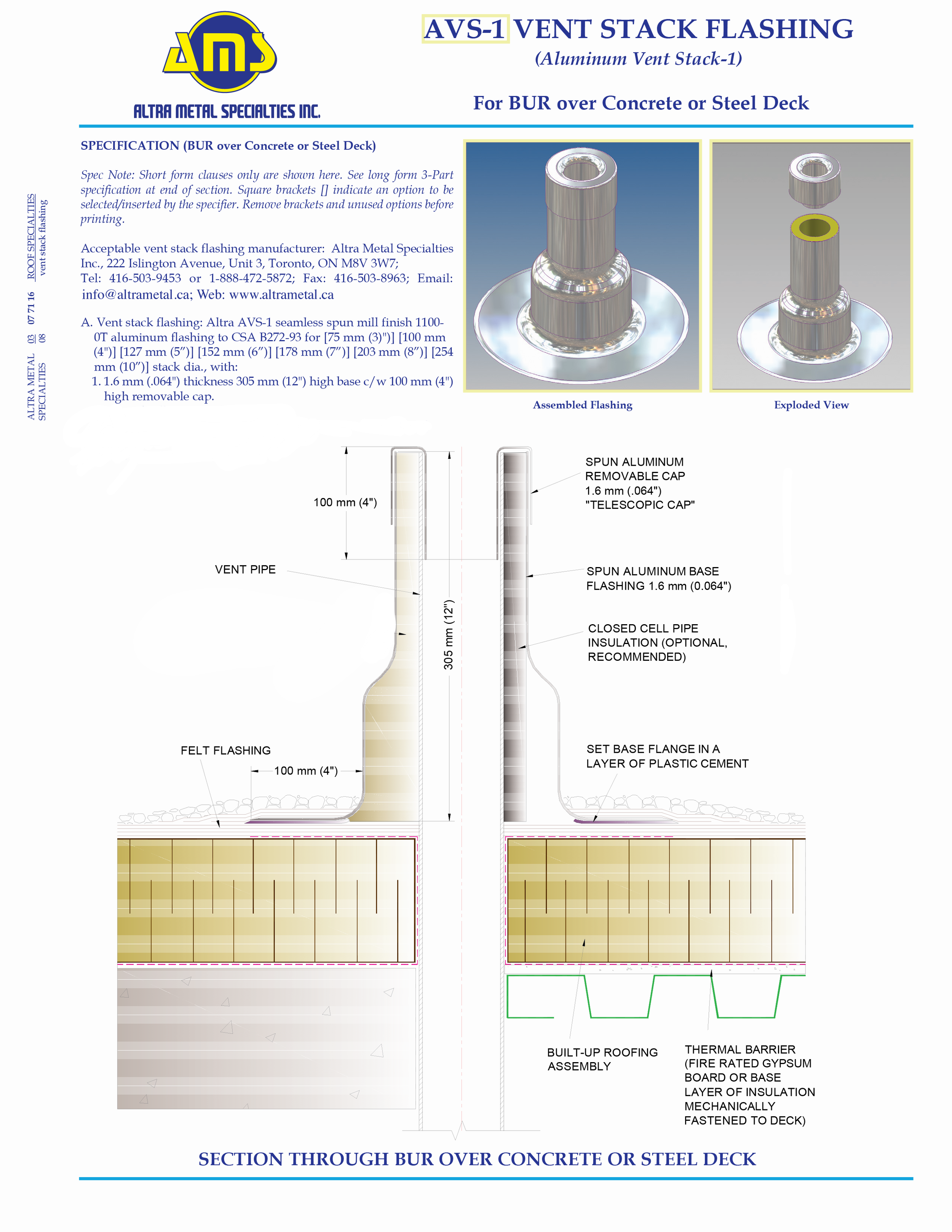

A. Vent stack flashing: Altra AVS-1 seamless spun mill finish 1100- 0T aluminum flashing to CSA B272-93 for [75 mm (3)")] [100 mm (4")] [127 mm (5”)] [152 mm (6”)] [178 mm (7”)] [203 mm (8”)] [254 mm (10”)] stack dia., with:
1. 1.6 mm (.064") thickness 305 mm (12") high base c/w 100 mm (4") high removable cap.
[2. closed cell pipe insulation liner.] [3. bituminous painted deck flange.]
[4. PVC coated deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable vent stack flashing manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3w7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

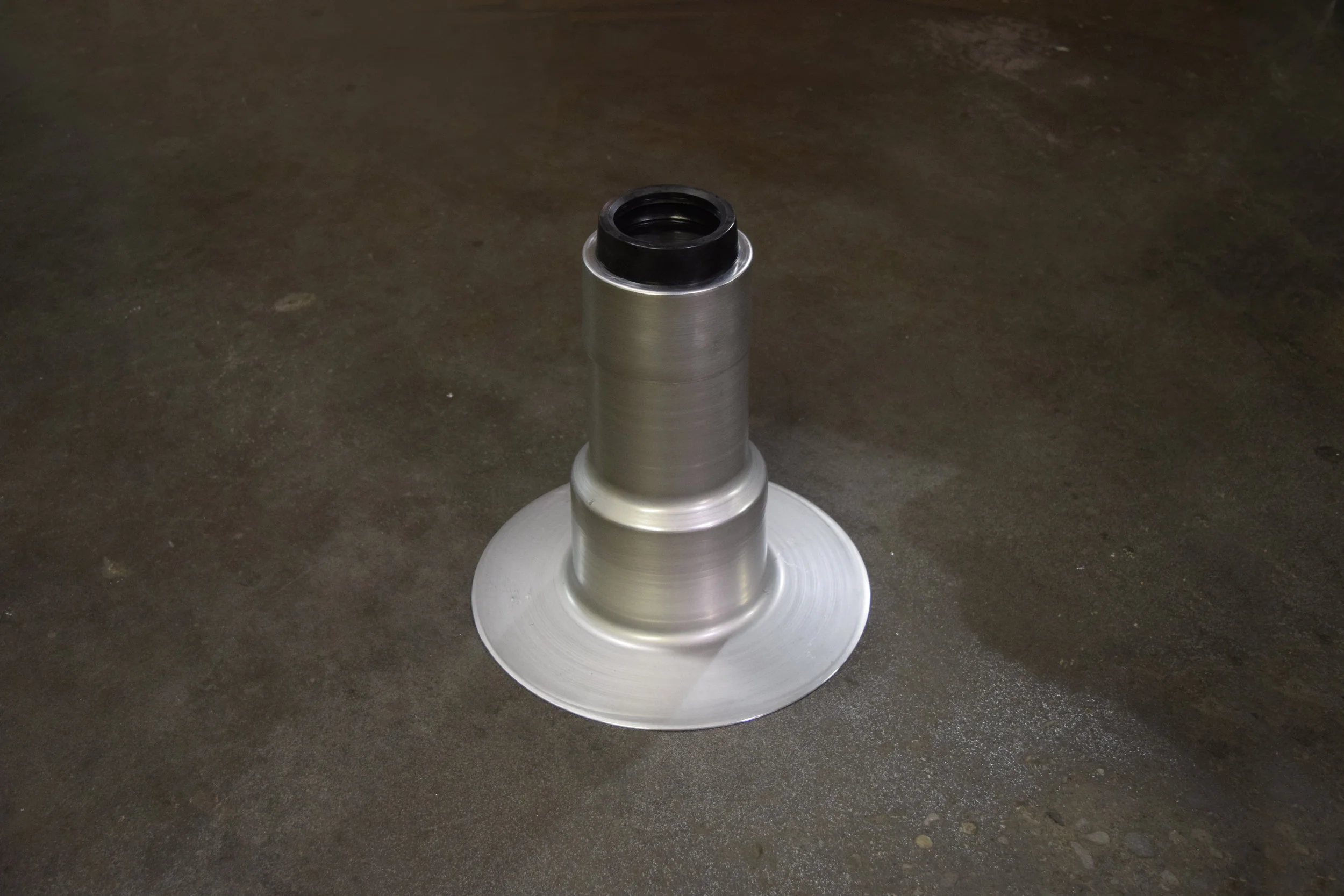

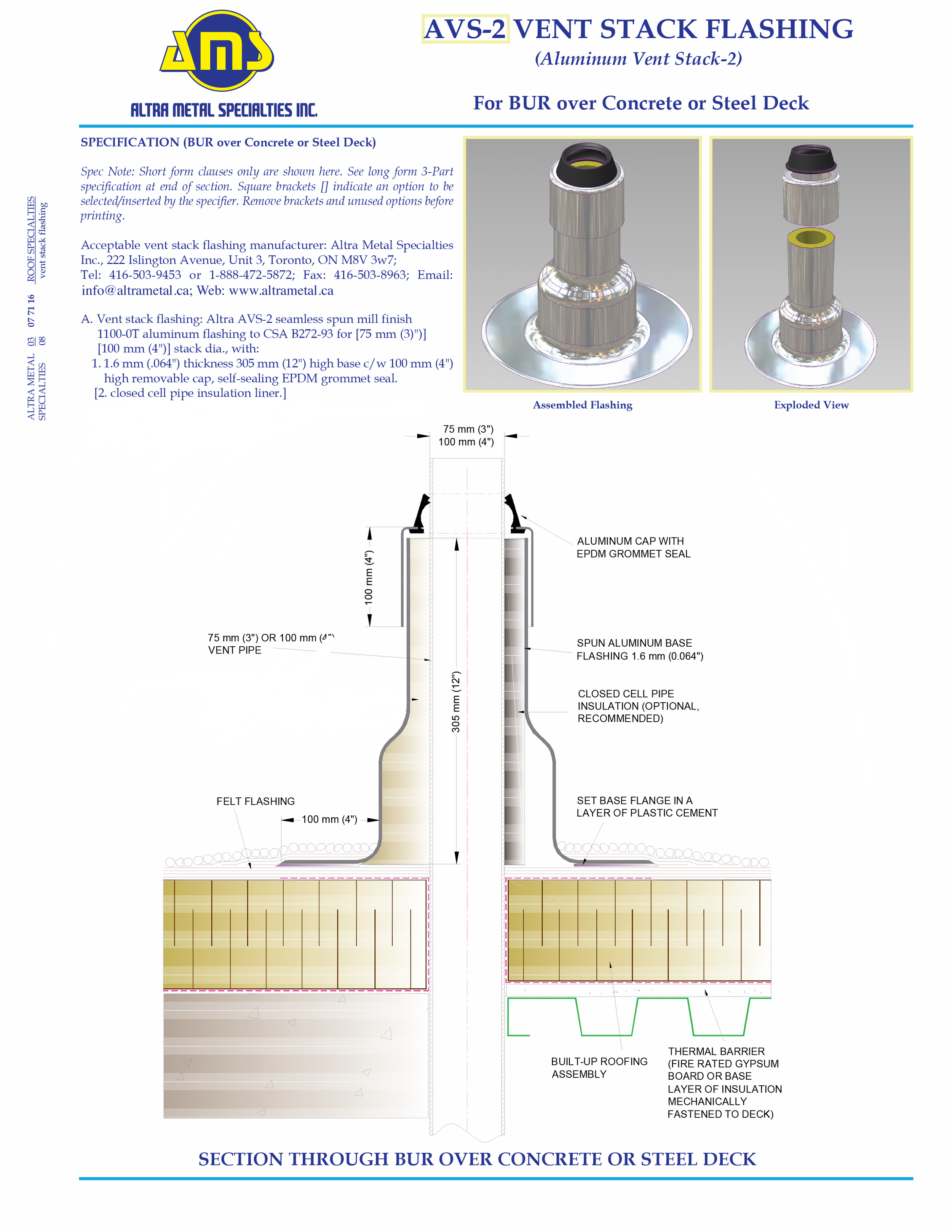

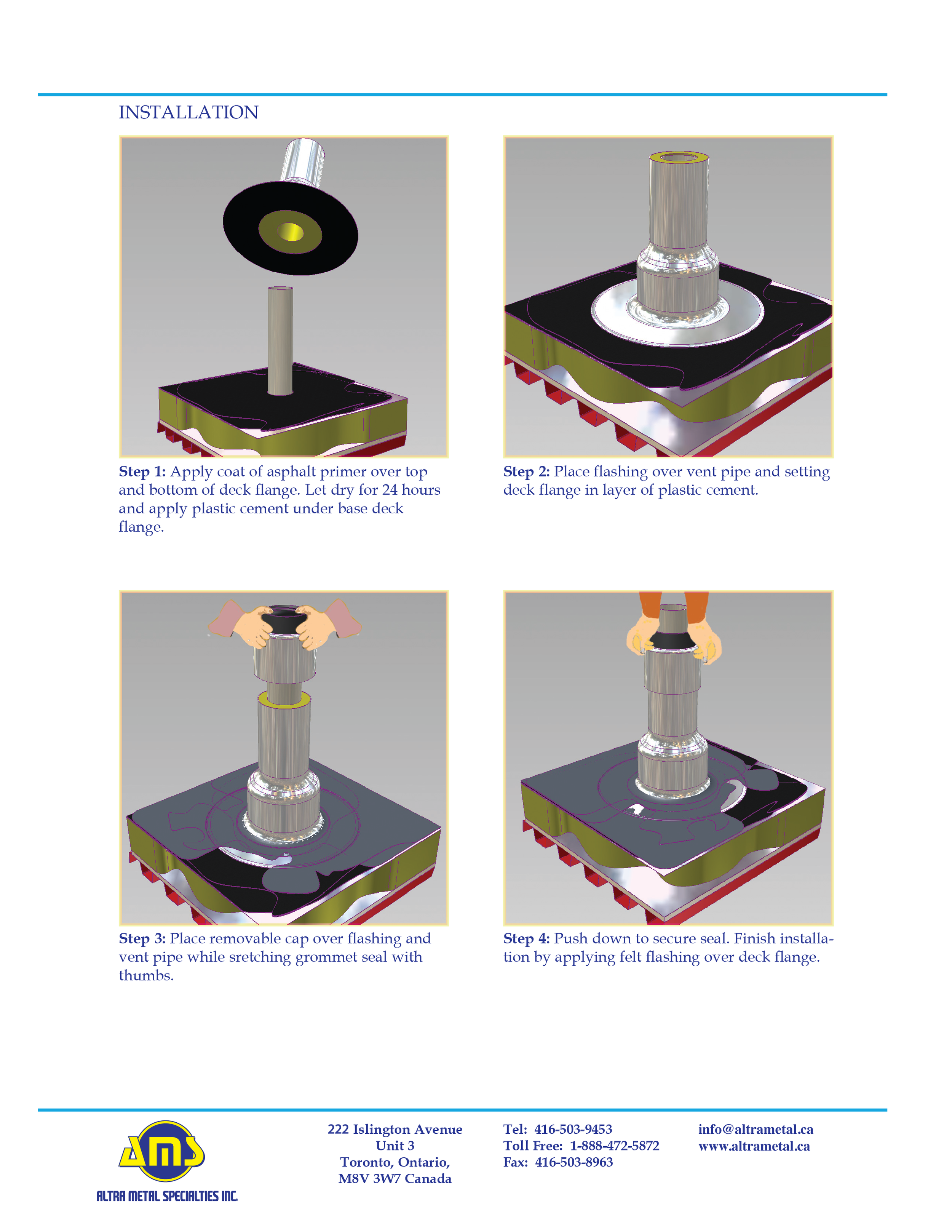

A. Vent stack flashing: Altra AVS-2 seamless spun mill finish 1100-0T aluminum flashing to CSA B272-93 for [75 mm (3)")] [100 mm (4")] stack dia., with:
1. 1.6 mm (.064") thickness 305 mm (12") high base c/w 100 mm (4") high removable cap, self-sealing EPDM grommet seal.
[2. closed cell pipe insulation liner.]
[3. bituminous painted deck flange.]
[4. PVC coated deck flange.]

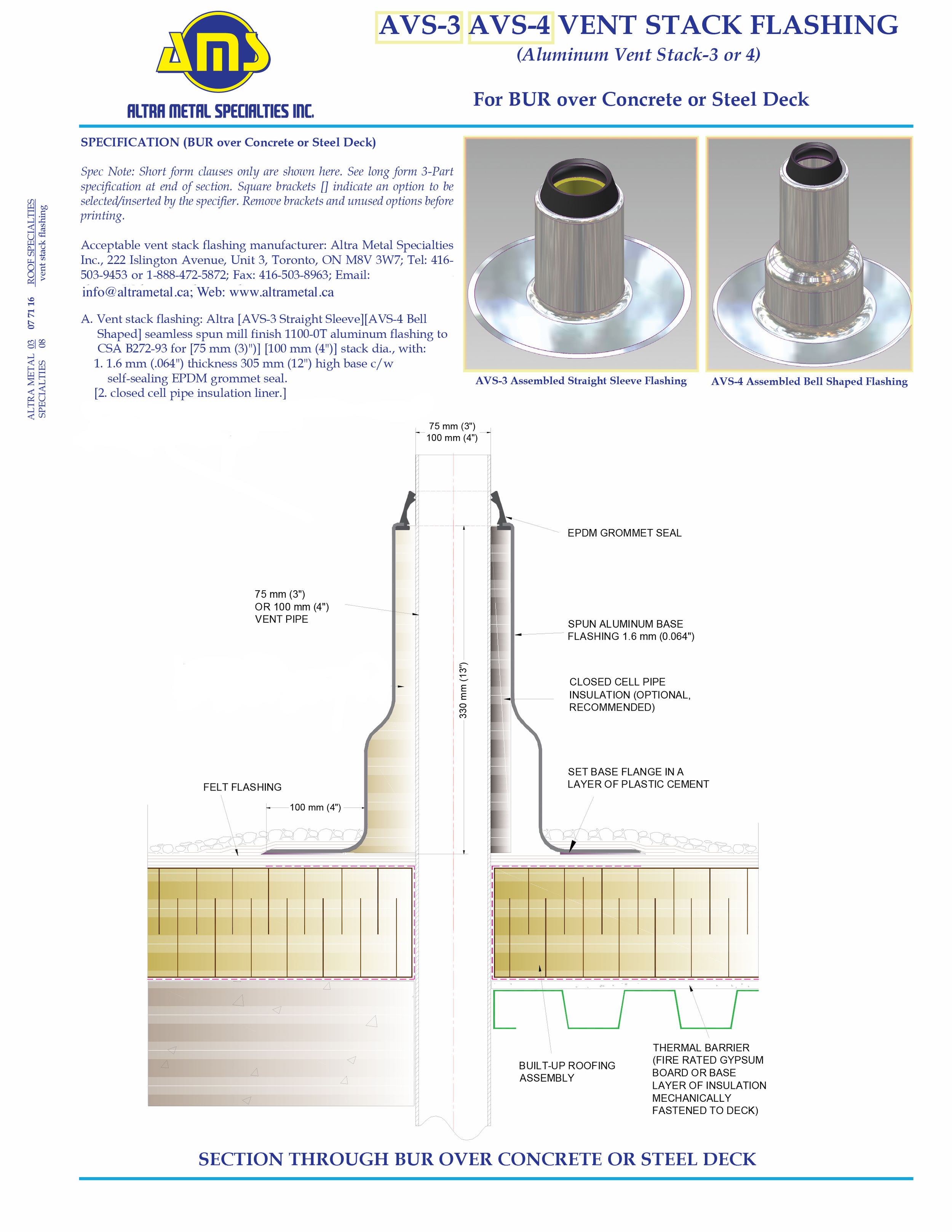

SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable vent stack flashing manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7; Tel: 416- 503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

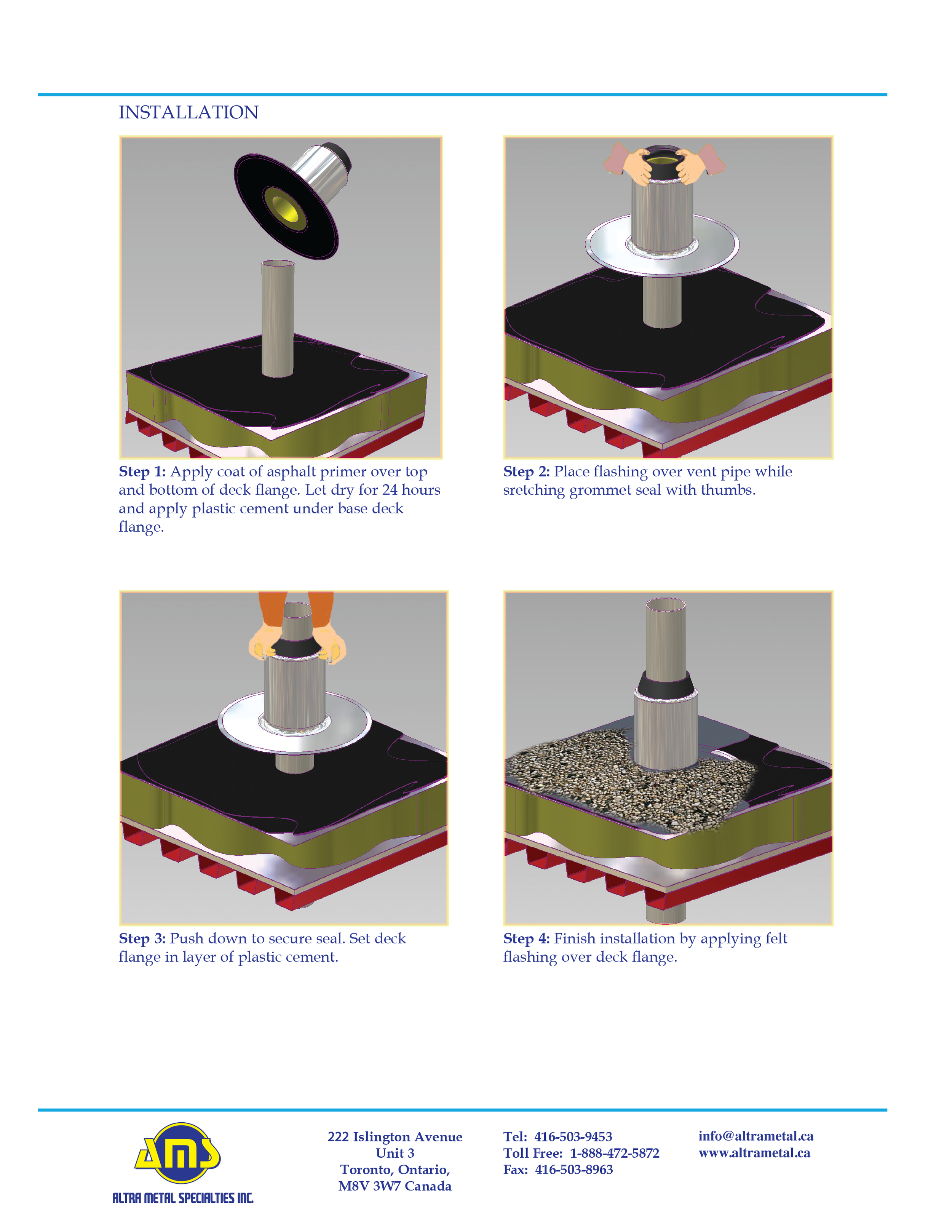

A. Vent stack flashing: Altra [AVS-3 Straight Sleeve][AVS-4 Bell Shaped] seamless spun mill finish 1100-0T aluminum flashing to CSA B272-93 for [75 mm (3)")] [100 mm (4")] stack dia., with:
1. 1.6 mm (.064") thickness 305 mm (12") high base c/w self-sealing EPDM grommet seal.

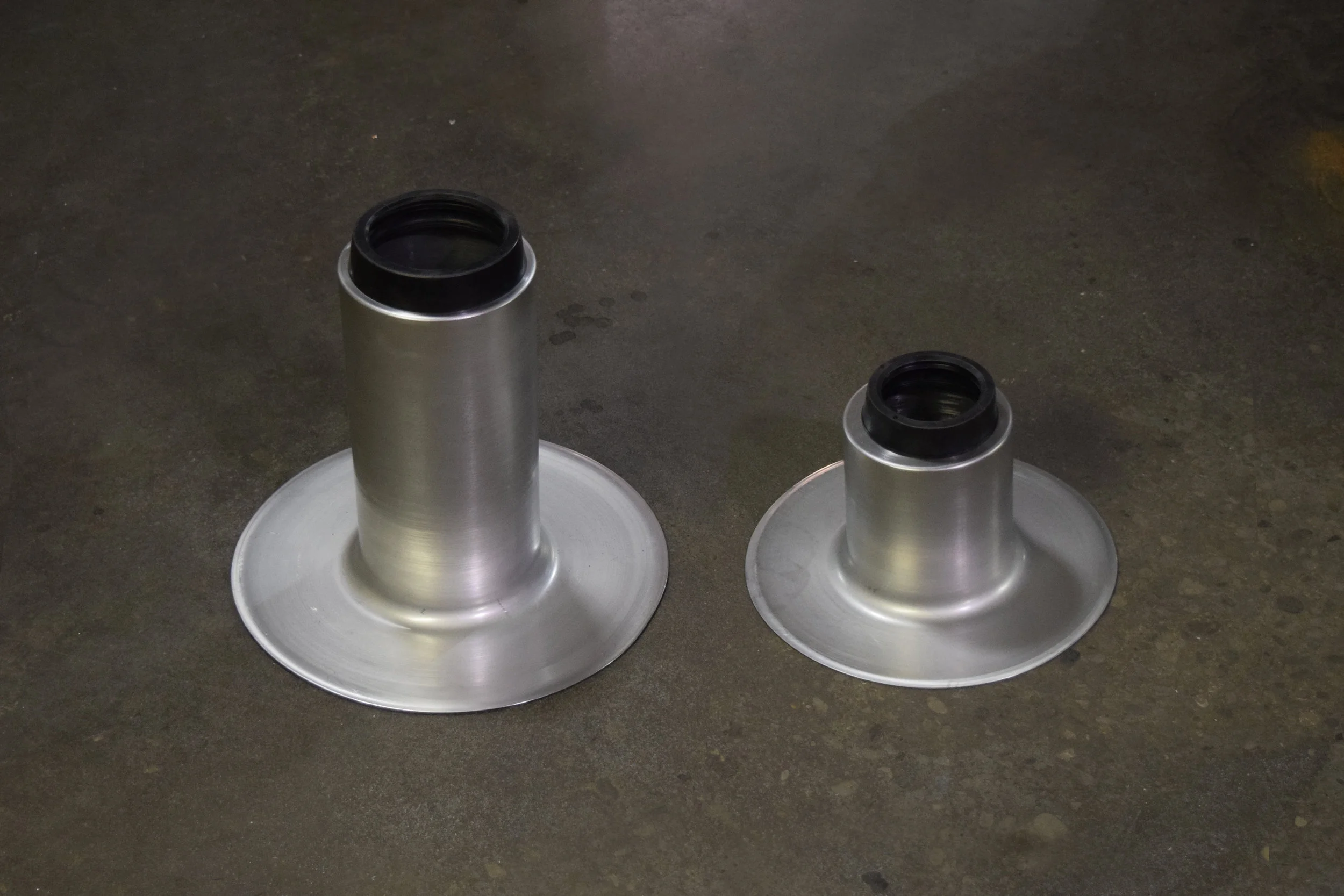

AVS-3 Assembled Straight Sleeve Flashing
AVS-4 Assembled Bell Shaped Flashing
[2. closed cell pipe insulation liner.] [3. bituminous painted deck flange.]
[4. PVC coated deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable vent stack flashing manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

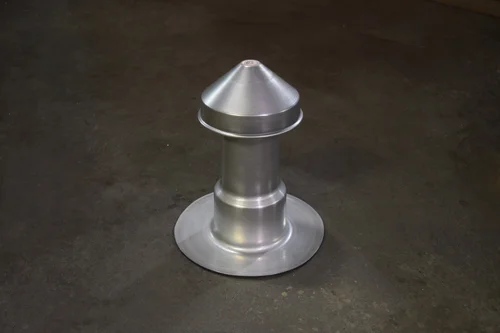

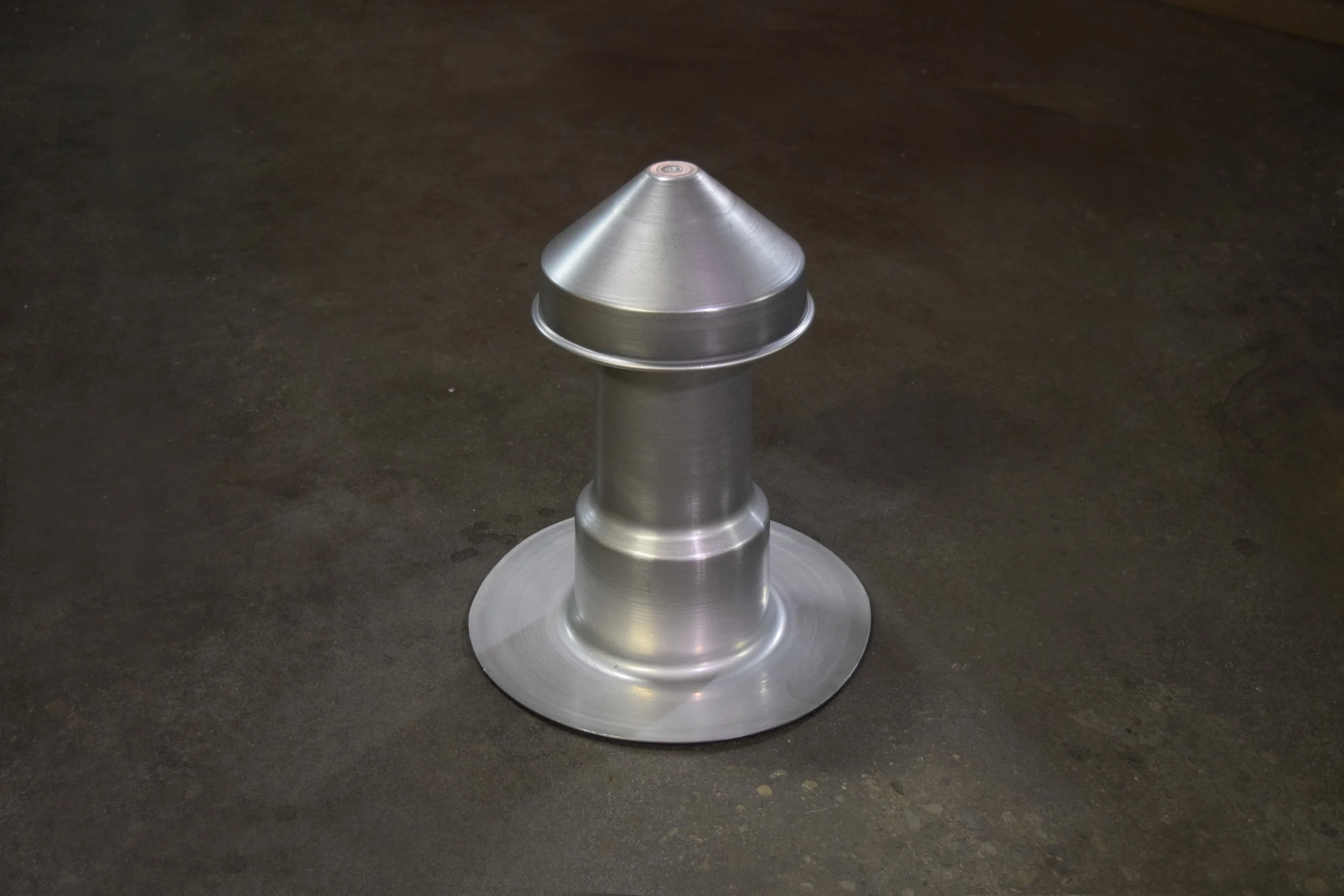

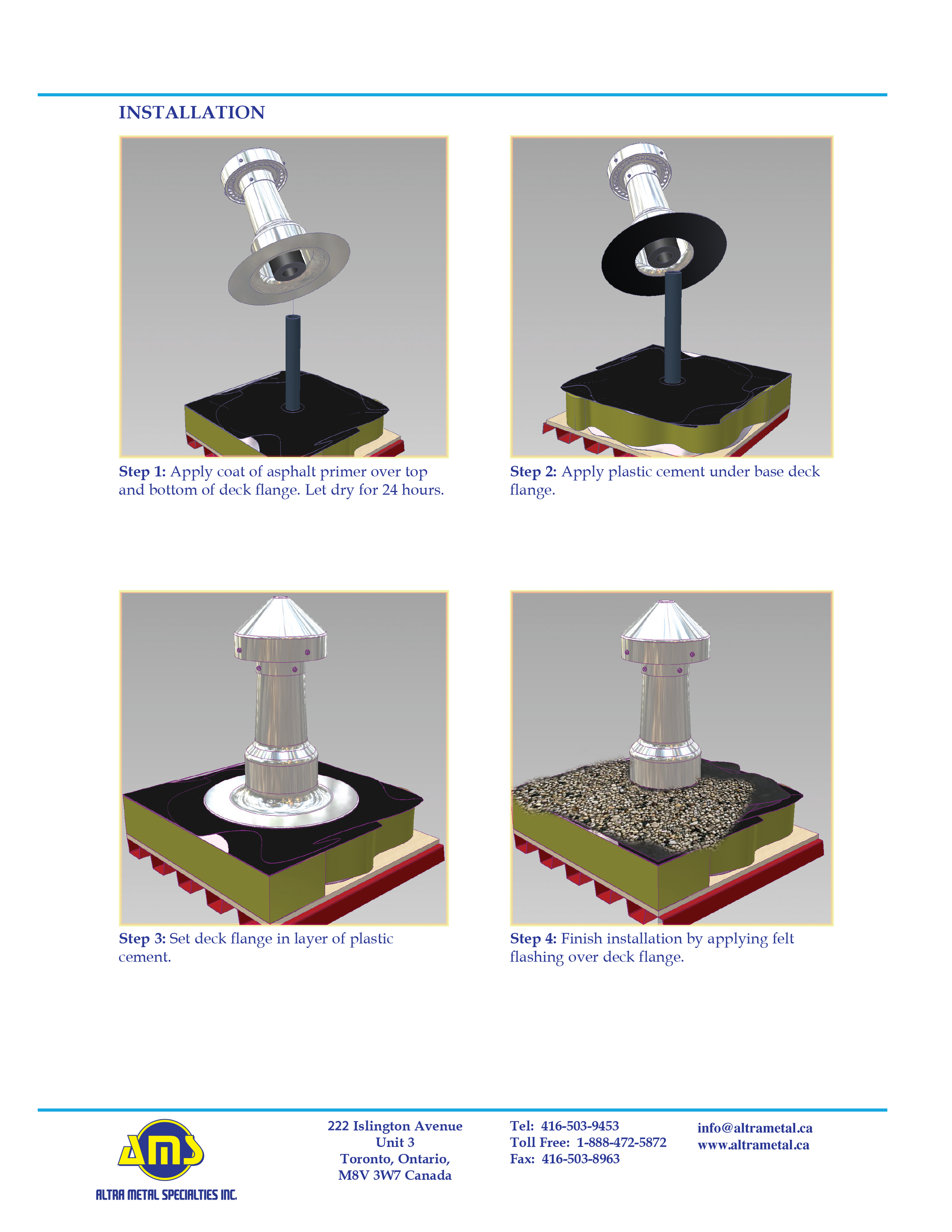

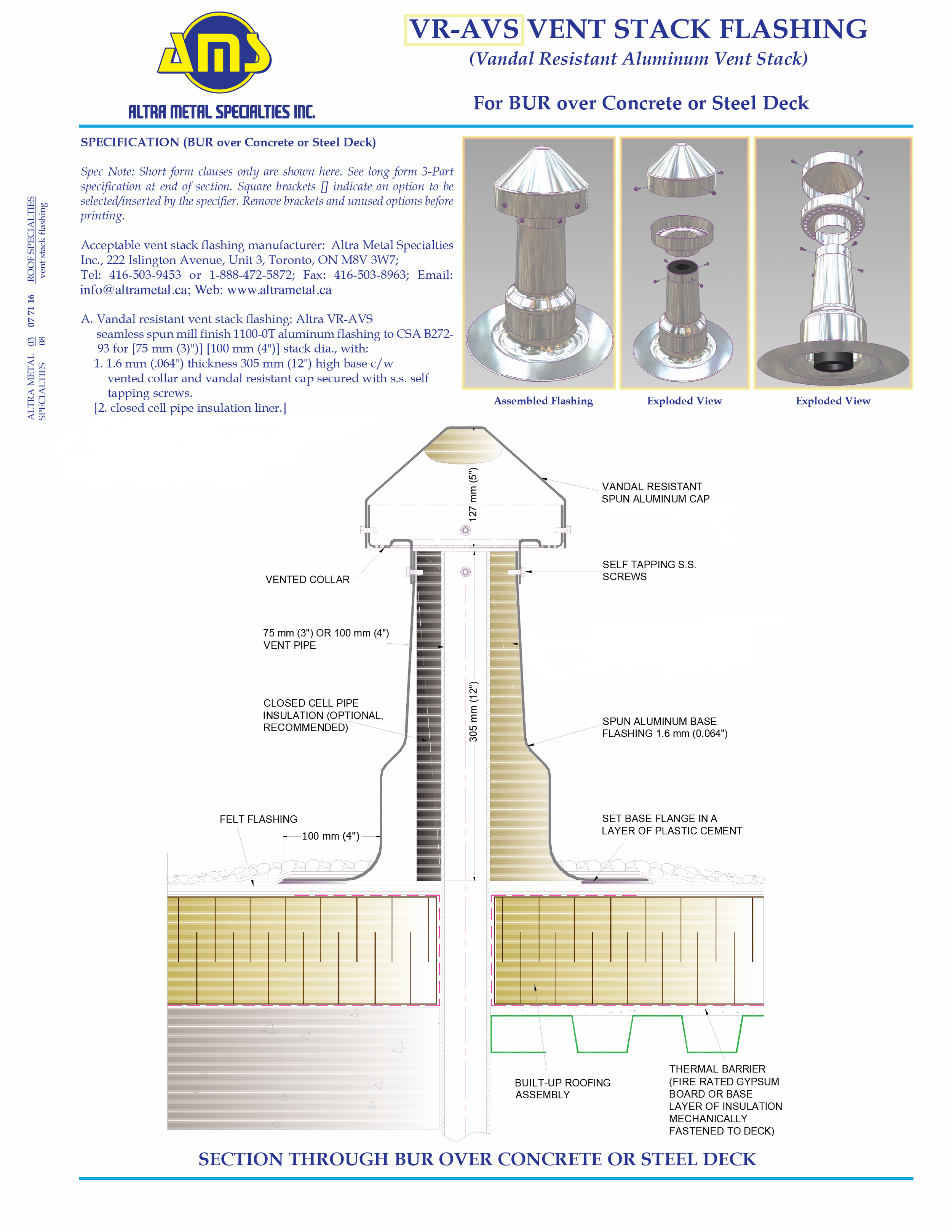

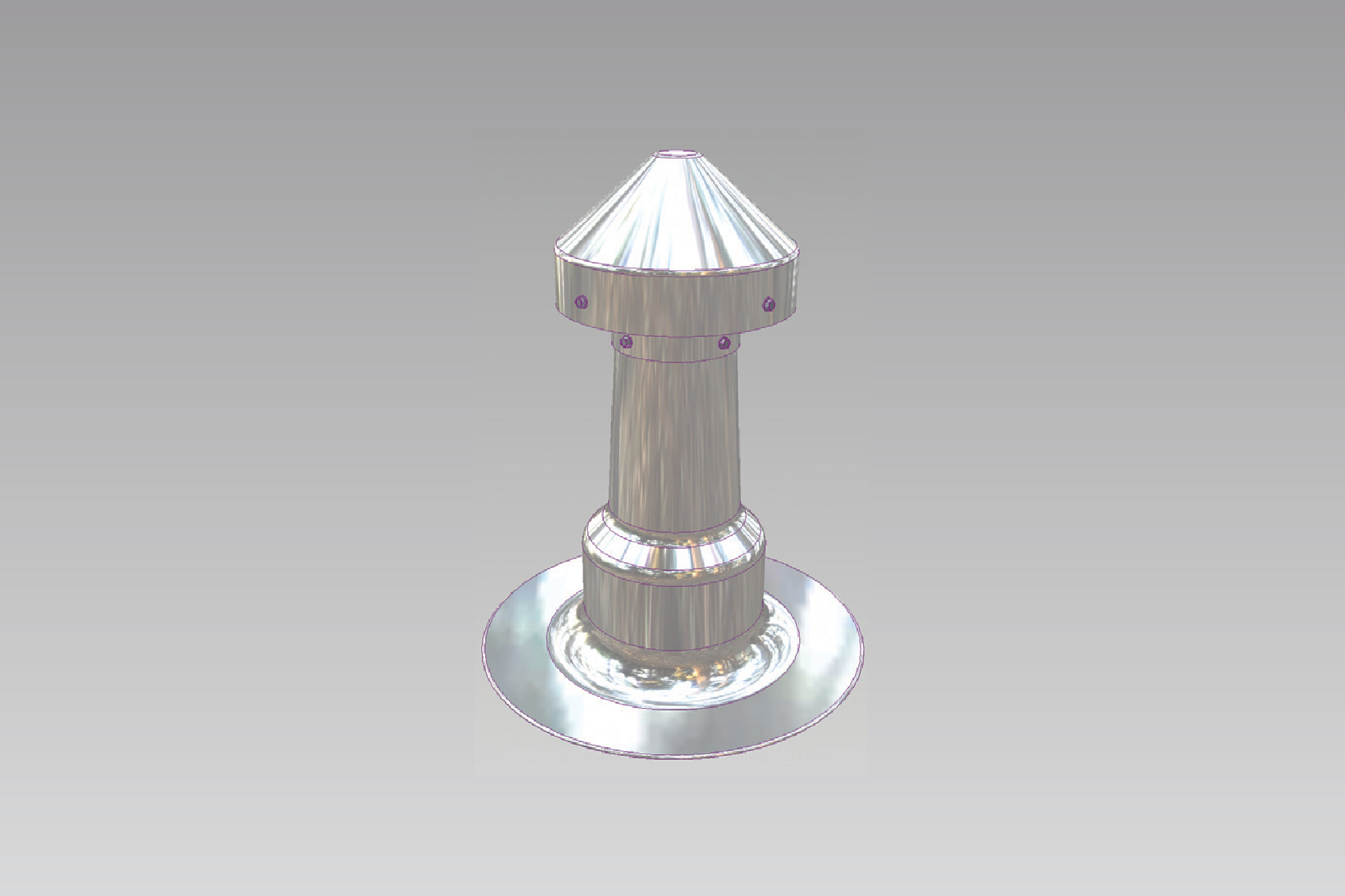

A. Vandal resistant vent stack flashing: Altra VR-AVS
seamless spun mill finish 1100-0T aluminum flashing to CSA B272- 93 for [75 mm (3)")] [100 mm (4")] stack dia., with:
1. 1.6 mm (.064") thickness 305 mm (12") high base c/w vented collar and vandal resistant cap secured with s.s. self tapping screws.
[2. closed cell pipe insulation liner.]
[3. bituminous painted deck flange.]
[4. PVC coated deck flange.]
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable vent stack flashing manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

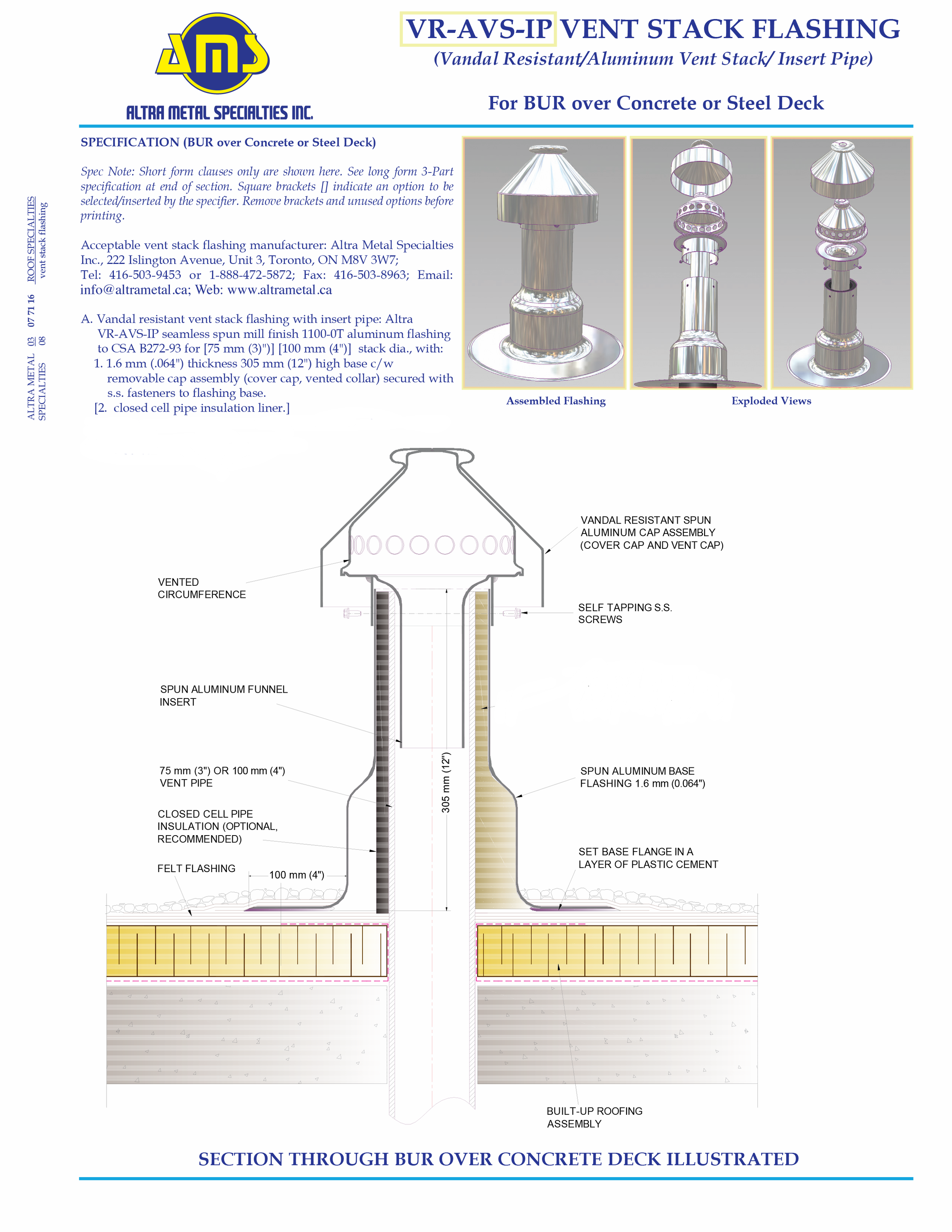

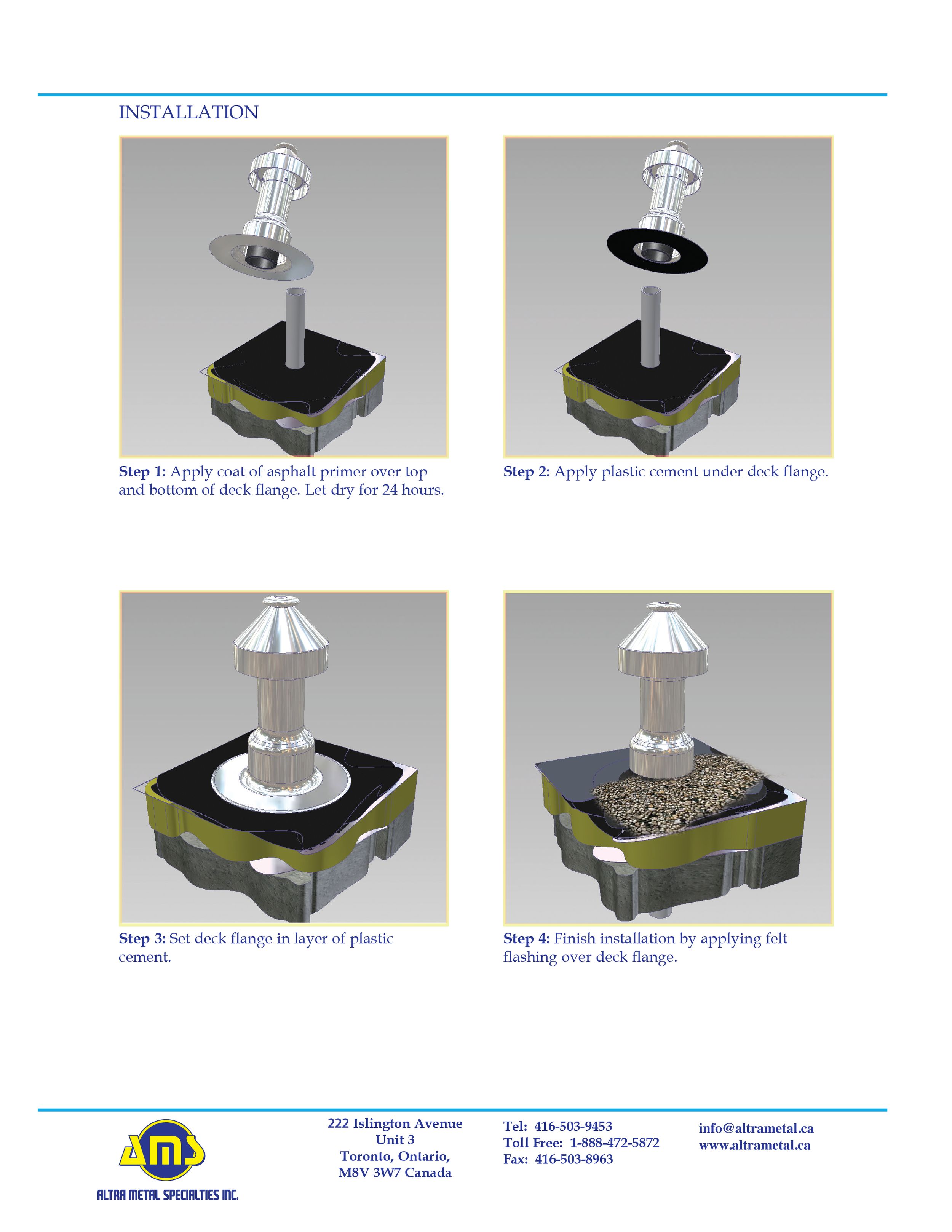

A. Vandal resistant vent stack flashing with insert pipe: Altra VR-AVS-IP seamless spun mill finish 1100-0T aluminum flashing to CSA B272-93 for [75 mm (3)")] [100 mm (4")] stack dia., with:
1. 1.6 mm (.064") thickness 305 mm (12") high base c/w removable cap assembly (cover cap, vented collar) secured with s.s. fasteners to flashing base.
2. closed cell pipe insulation liner.
3. bituminous painted deck flange.
4. PVC coated deck flange.
SPECIFICATION (BUR over Concrete or Steel Deck)
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable “B” vent flashing manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3, Toronto, ON M8V 3W7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

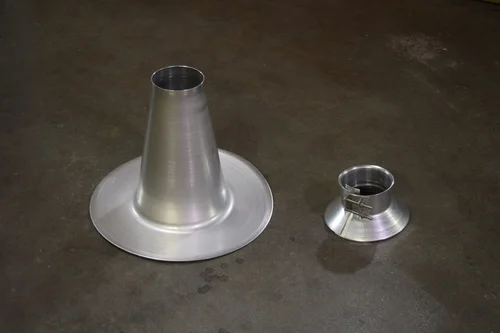

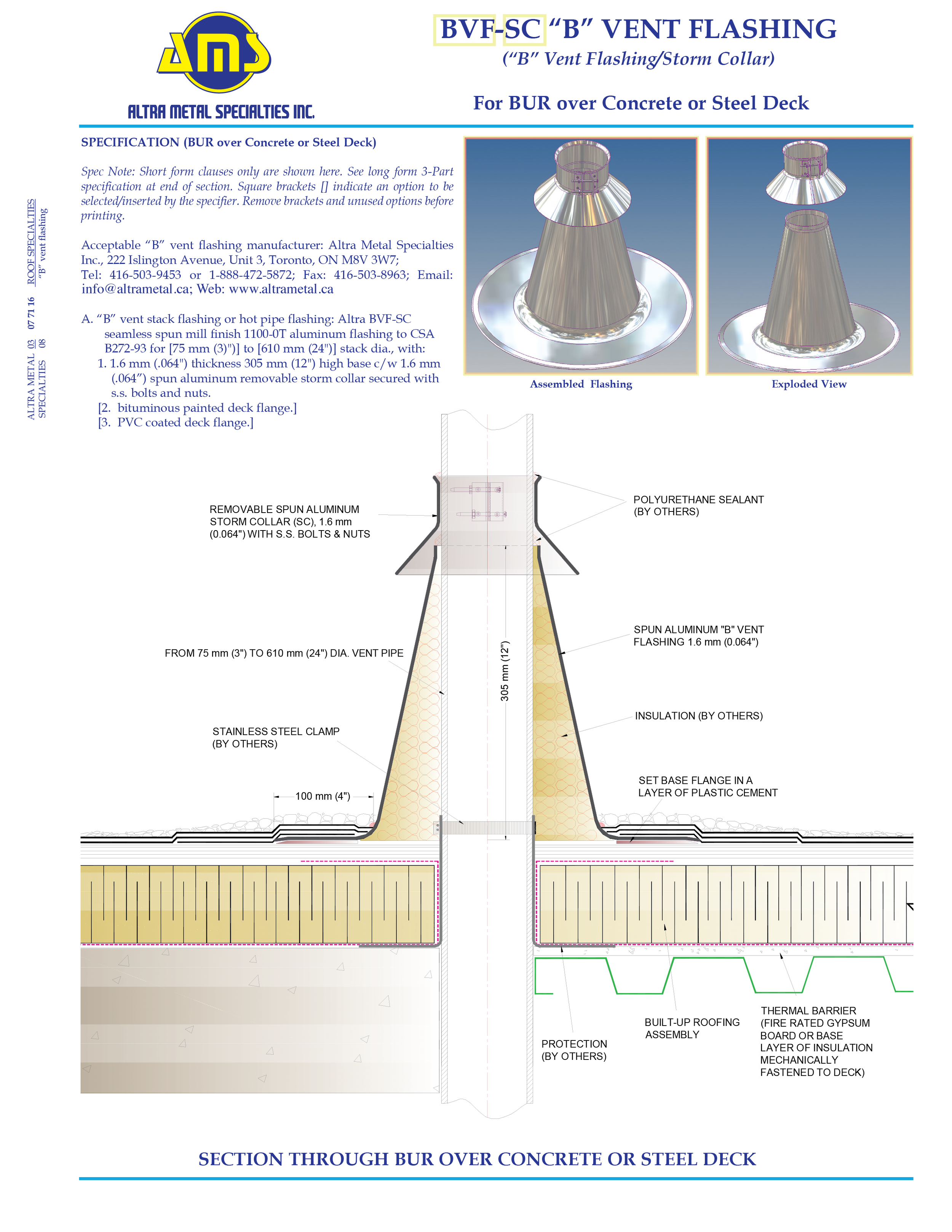

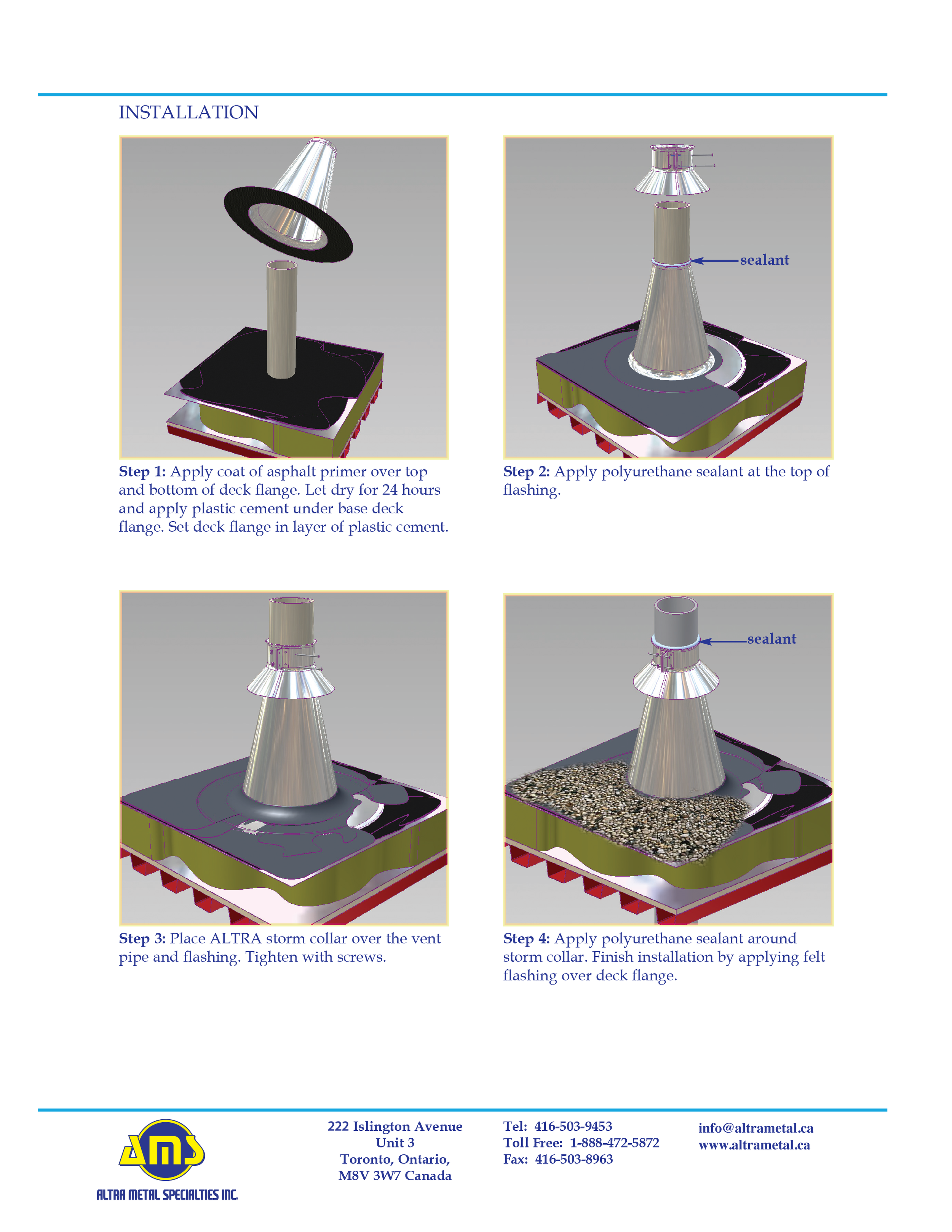

A. “B” vent stack flashing or hot pipe flashing: Altra BVF-SC seamless spun mill finish 1100-0T aluminum flashing to CSA B272-93 for [75 mm (3)")] to [610 mm (24")] stack dia., with:
1. 1.6 mm (.064") thickness 305 mm (12") high base c/w 1.6 mm (.064”) spun aluminum removable storm collar secured with s.s. bolts and nuts.
[2. bituminous painted deck flange.] [3. PVC coated deck flange.]
