SPECIFICATION
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable fall arrest roof anchors manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue Unit #3, Toronto, ON M8V 3W7; Tel: 416-503- 9453 or 1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

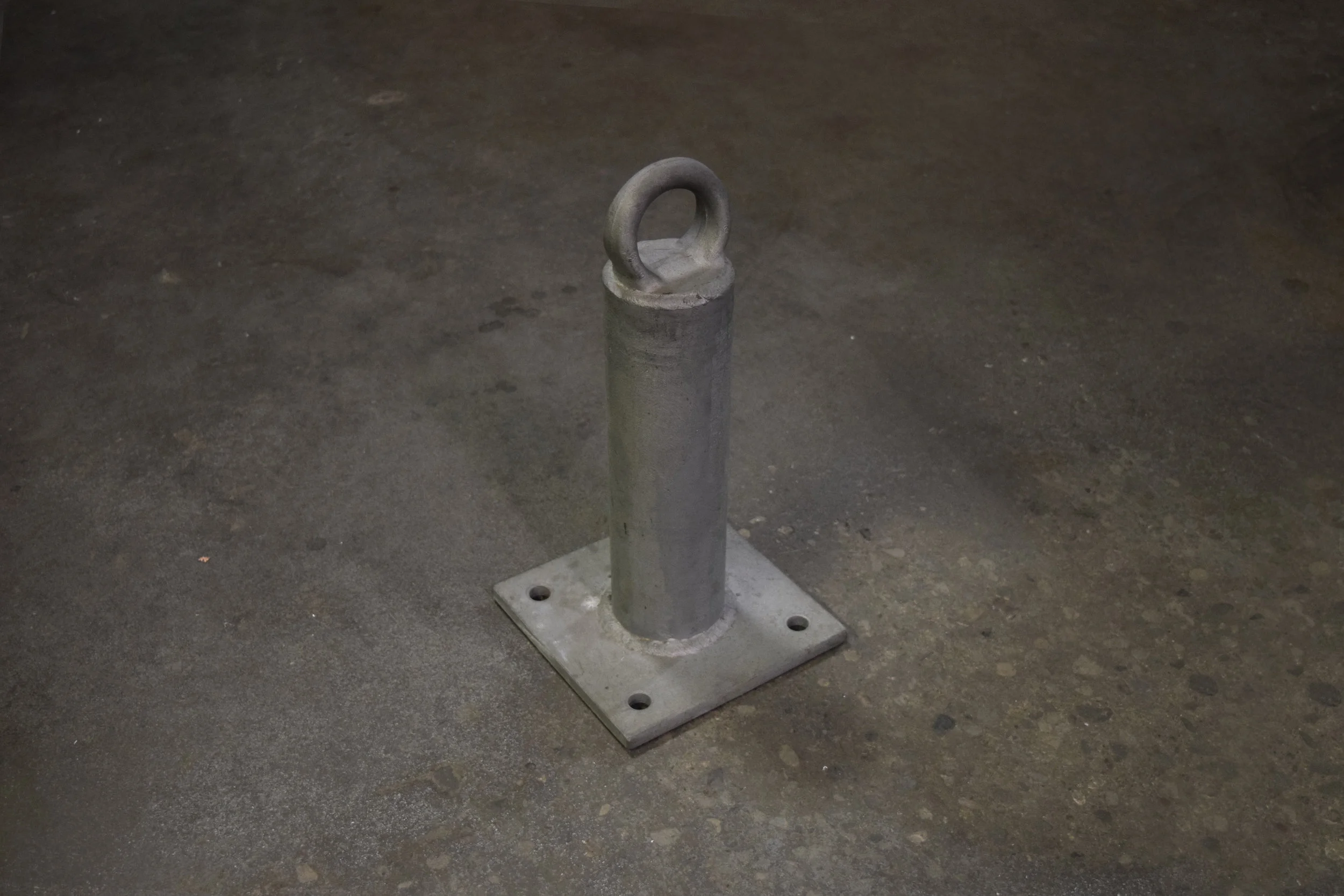

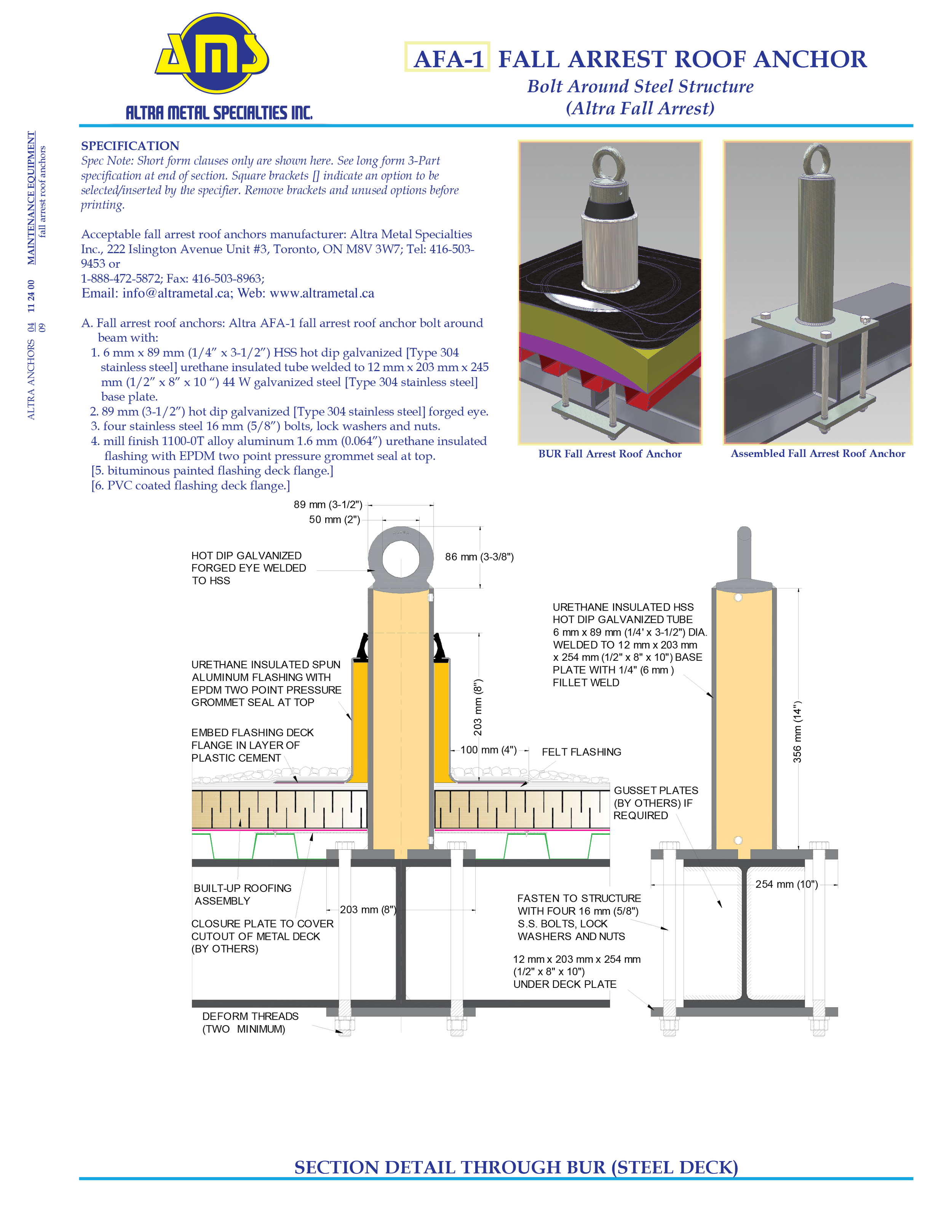

A. Fall arrest roof anchors: Altra AFA-1 fall arrest roof anchor bolt around beam with:
1. 6 mm x 89 mm (1/4” x 3-1/2”) HSS hot dip galvanized [Type 304 stainless steel] urethane insulated tube welded to 12 mm x 203 mm x 245 mm (1/2” x 8” x 10 “) 44 W galvanized steel [Type 304 stainless steel] base plate.
2. 89 mm (3-1/2”) hot dip galvanized [Type 304 stainless steel] forged eye.
3. four stainless steel 16 mm (5/8”) bolts, lock washers and nuts.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) urethane insulated flashing with EPDM two point pressure grommet seal at top.
[5. bituminous painted flashing deck flange.]
[6. PVC coated flashing deck flange.]
SPECIFICATION
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable fall arrest roof anchors manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue Unit #3, Toronto, ON M8V 3W7; Tel: 416-503- 9453 or
1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

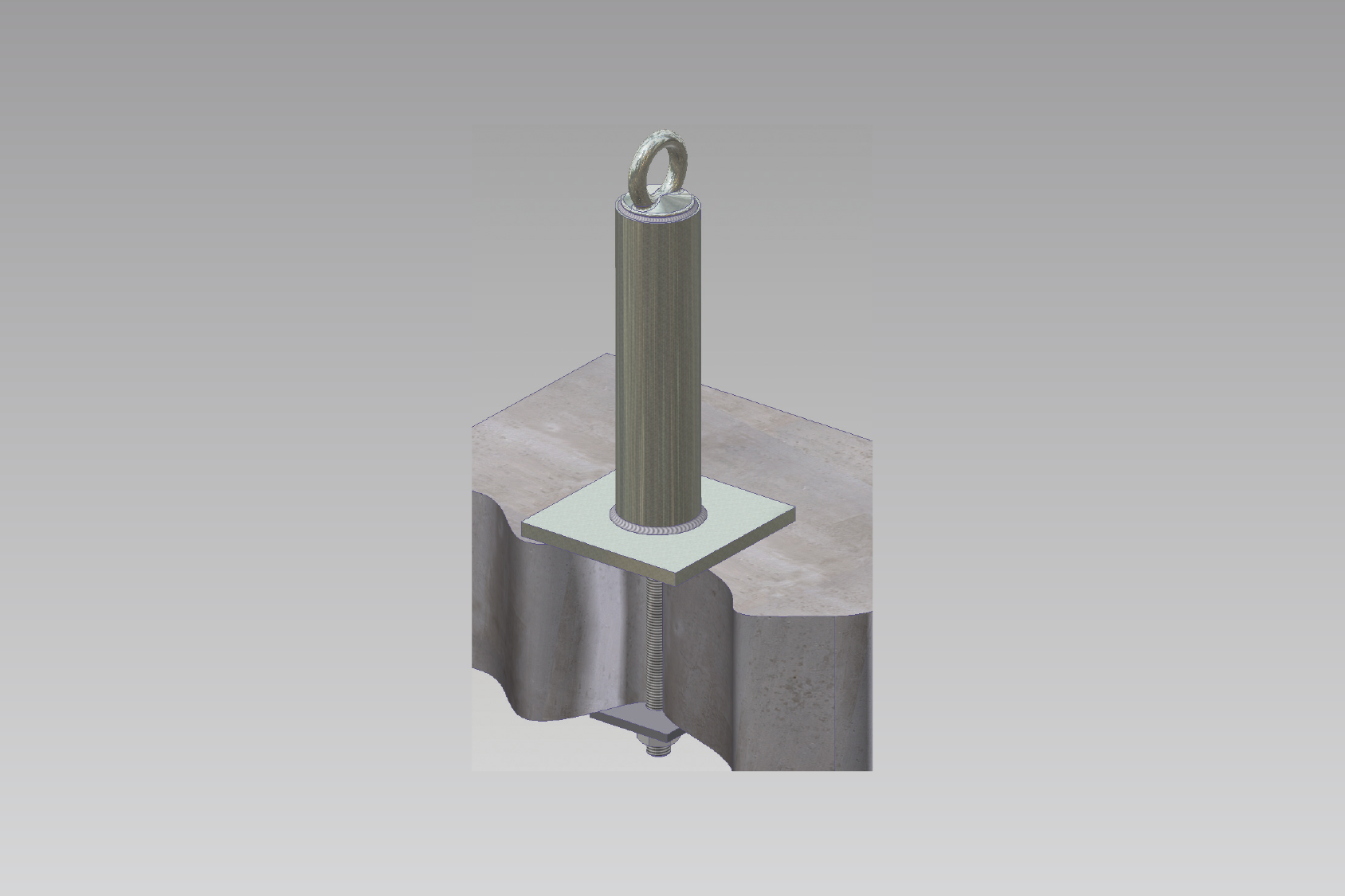

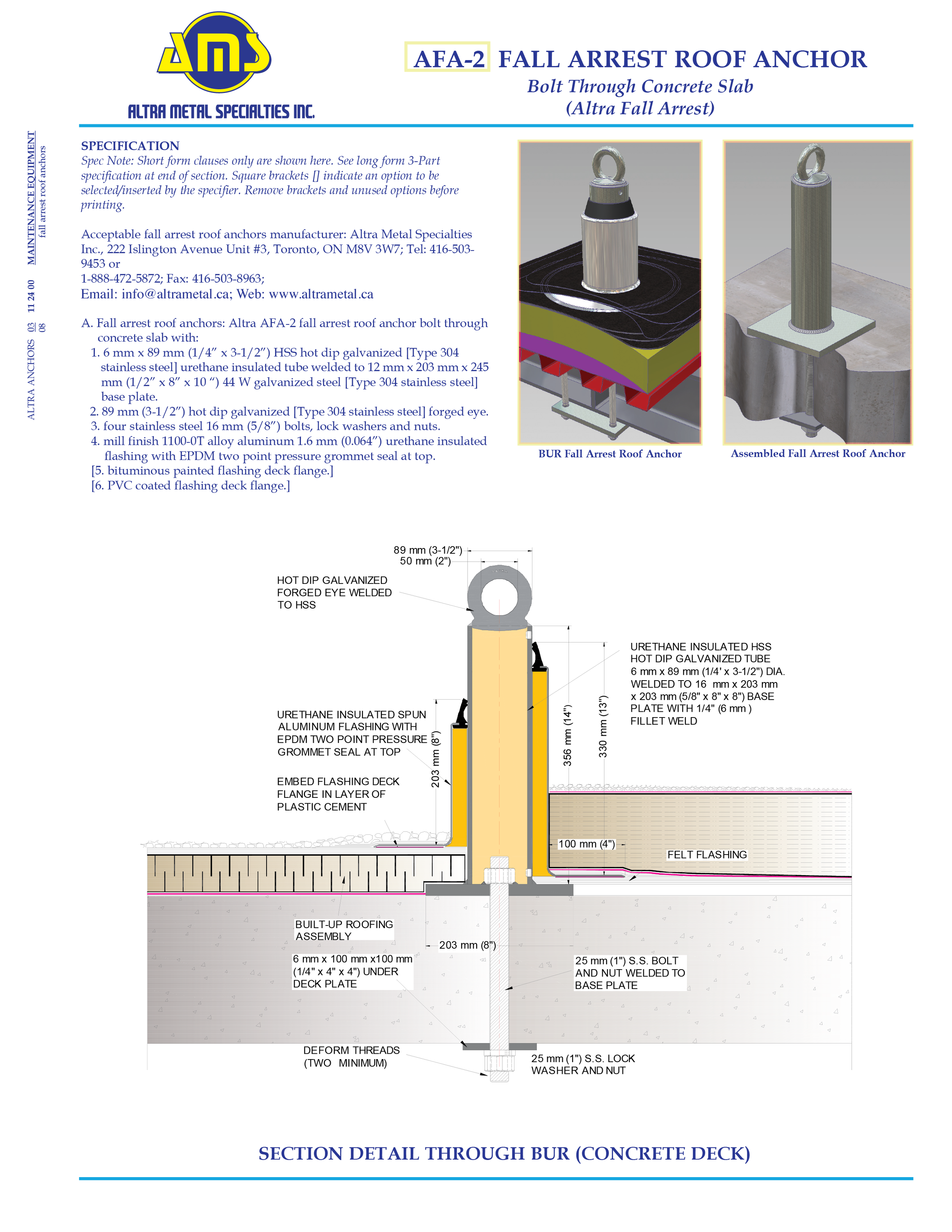

A. Fall arrest roof anchors: Altra AFA-2 fall arrest roof anchor bolt through concrete slab with:
1. 6 mm x 89 mm (1/4” x 3-1/2”) HSS hot dip galvanized [Type 304 stainless steel] urethane insulated tube welded to 12 mm x 203 mm x 245 mm (1/2” x 8” x 10 “) 44 W galvanized steel [Type 304 stainless steel] base plate.
2. 89 mm (3-1/2”) hot dip galvanized [Type 304 stainless steel] forged eye. 3. four stainless steel 16 mm (5/8”) bolts, lock washers and nuts.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) urethane insulated
flashing with EPDM two point pressure grommet seal at top. [5. bituminous painted flashing deck flange.]
[6. PVC coated flashing deck flange.]
SPECIFICATION
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable fall arrest roof anchors manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue Unt #3, Toronto, ON M8V 3W7; Tel: 416-503- 9453 or
1-888-472-5872; Fax: 416-503-8963; Email: info@altrametal.ca; Web: www.altrametal.ca.

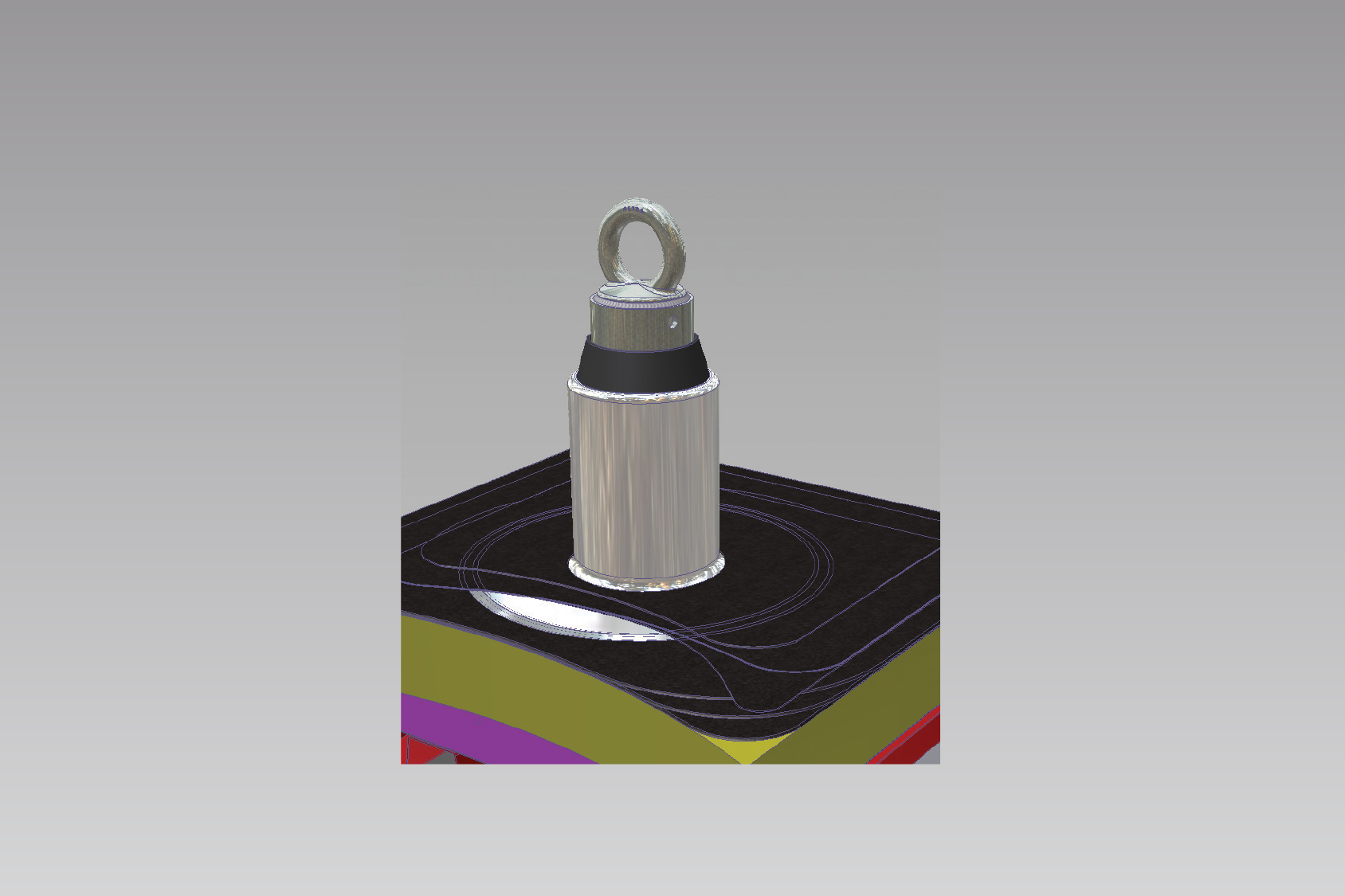

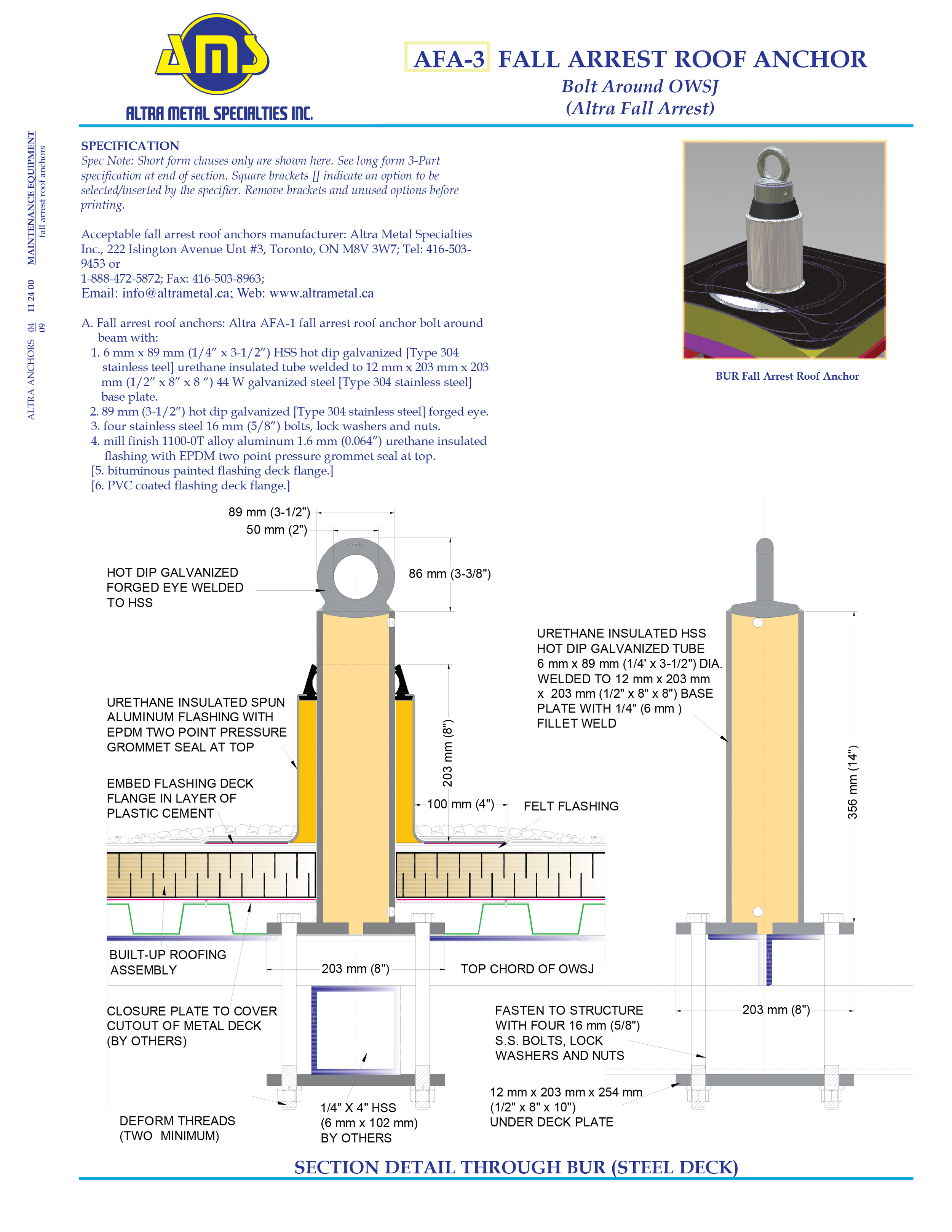

A. Fall arrest roof anchors: Altra AFA-1 fall arrest roof anchor bolt around beam with:
1. 6 mm x 89 mm (1/4” x 3-1/2”) HSS hot dip galvanized [Type 304 stainless teel] urethane insulated tube welded to 12 mm x 203 mm x 203 mm (1/2” x 8” x 8 “) 44 W galvanized steel [Type 304 stainless steel] base plate.
2. 89 mm (3-1/2”) hot dip galvanized [Type 304 stainless steel] forged eye. 3. four stainless steel 16 mm (5/8”) bolts, lock washers and nuts.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) urethane insulated
flashing with EPDM two point pressure grommet seal at top. [5. bituminous painted flashing deck flange.]
[6. PVC coated flashing deck flange.]
SPECIFICATION
Spec Note: Short form clauses only are shown here. See long form 3-Part specification at end of section. Square brackets [] indicate an option to be selected/inserted by the specifier. Remove brackets and unused options before printing.
Acceptable fall arrest roof anchors manufacturer: Altra Metal Specialties Inc., 222 Islington Avenue, Unit 3 Toronto, ON M8V 3W7;
Tel: 416-503-9453 or 1-888-472-5872; Fax: 416-503-8963;
Email: info@altrametal.ca; Web: www.altrametal.ca.

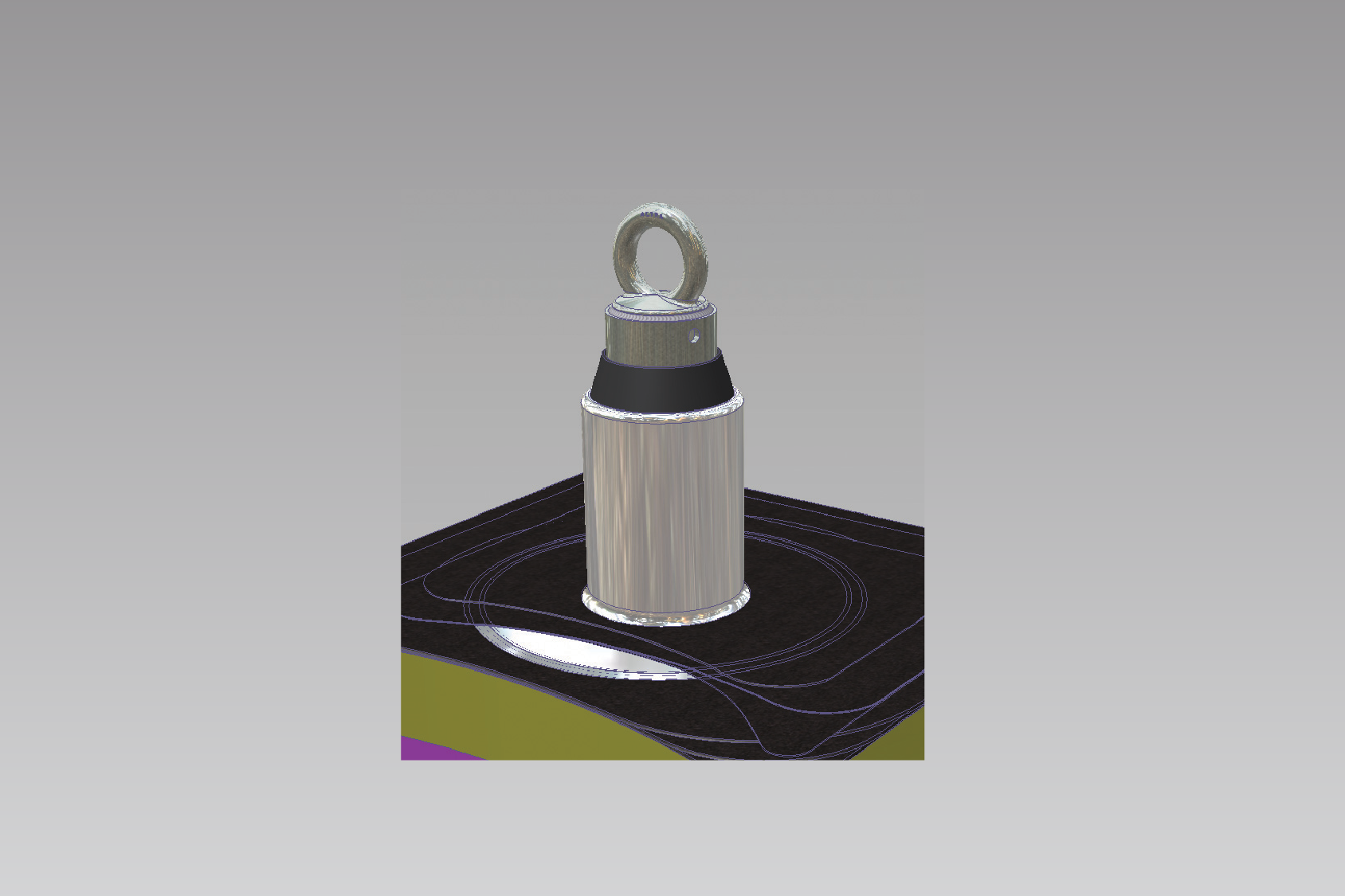

A. Fall arrest roof anchors: Altra AFA-4 fall arrest roof anchor cast-in place with :
1. 6 mm x 89 mm (1/4” x 3-1/2”) HSS hot dip galvanized [Type 304 stainless teel] urethane insulated tube welded to 12 mm x 203 mm x 245 mm (1/2” x 8” x 10 “) 44 W galvanized steel [Type 304 stainless steel] base plate.
2. 89 mm (3-1/2”) hot dip galvanized [Type 304 stainless steel] forged eye.
3. four stainless steel 16 mm (5/8”) bolts, welded to base plate.
4. mill finish 1100-0T alloy aluminum 1.6 mm (0.064”) urethane insulated flashing with EPDM two point pressure grommet seal at top.
[5. bituminous painted flashing deck flange.] [6. PVC coated flashing deck flange.]
